AGRIFRIGOR™ Ventilators
In order to introduce an appropriate pressure, a centrifugal fan is imperative. If a fan is equipped with a frequency control, the system can be optimally regulated.
Product overview

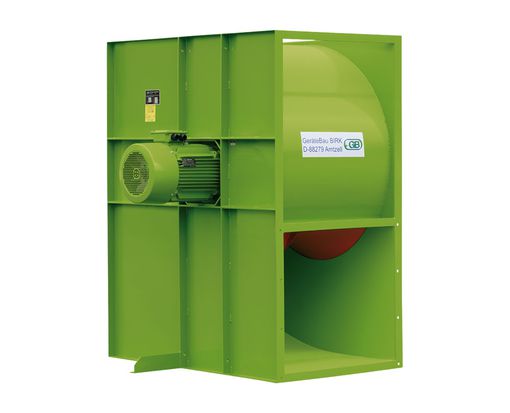

AGRIFRIGOR™AV 5.5
- Air volume (m³/s): 7,0
- Pressure (Pa)*: 1.200

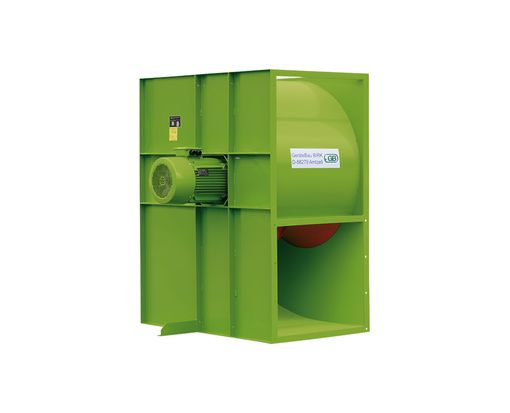

AGRIFRIGOR™AV 7.5
- Air volume (m³/s): 7,5
- Pressure (Pa)*: 1.800

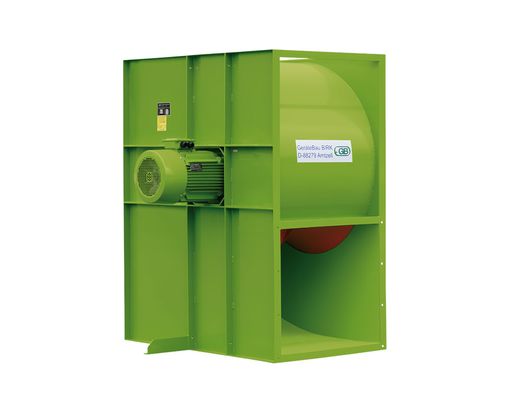

AGRIFRIGOR™AV 9
- Air volume (m³/s): 9,0
- Pressure (Pa)*: 1.850

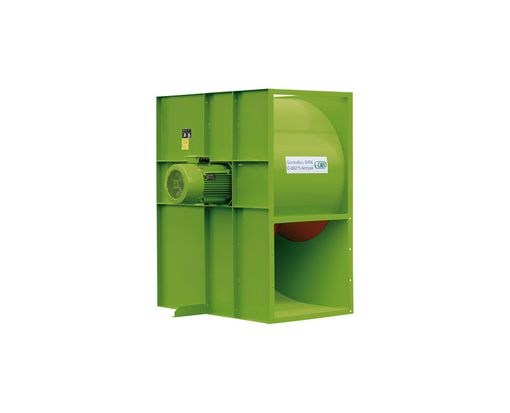

AGRIFRIGOR™AV 11
- Air volume (m³/s): 9,0
- Pressure (Pa)*: 2.300

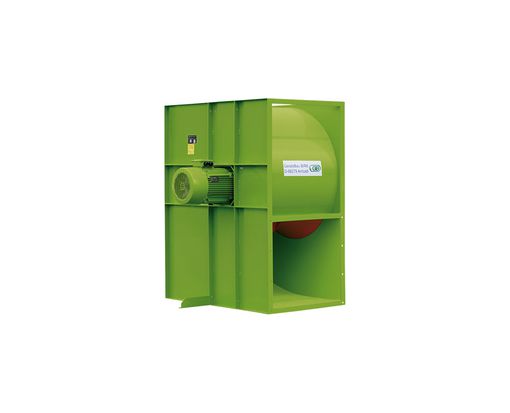

AGRIFRIGOR™AV 15
- Air volume (m³/s): 13,1
- Pressure (Pa)*: 1.800

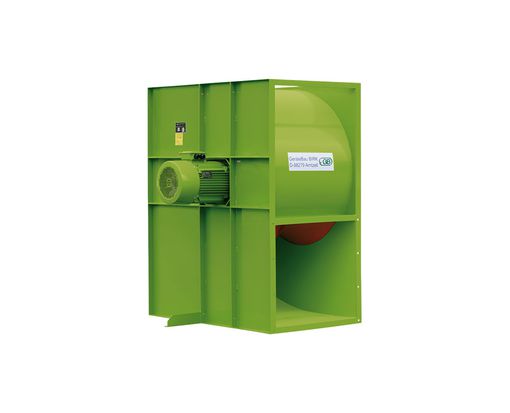

AGRIFRIGOR™AV 18.5
- Air volume (m³/s): 16,8
- Pressure (Pa)*: 2.100

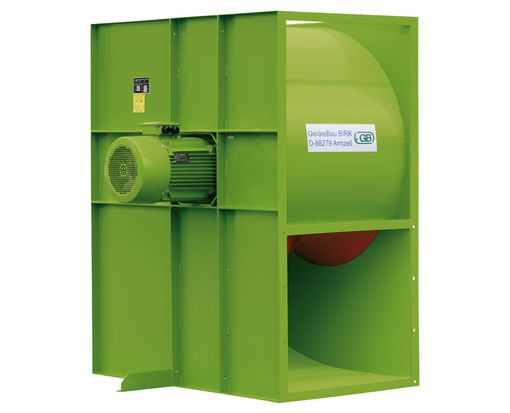

AGRIFRIGOR™AV 22
- Air volume (m³/s): 18,1
- Pressure (Pa)*: 2.300

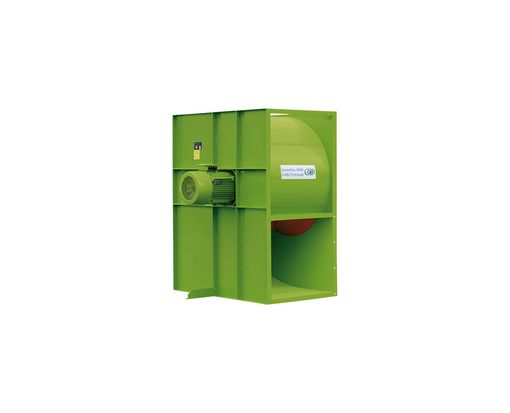

AGRIFRIGOR™AV 30
- Air volume (m³/s): 20,1
- Pressure (Pa)*: 2.800
AGRIFRIGOR™AV 45
- Air volume (m³/s): 28
- Pressure (Pa)*: 1.600
AGRIFRIGOR™AV 55
- Air volume (m³/s): 37,5
- Pressure (Pa)*: 1.950
AGRIFRIGOR™ | AV 5.5 | AV 7.5 | AV 9 | AV 11 | AV 15 | AV 18.5 | AV 22 | AV 30 | AV 45 | AV 55 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air volume | 7.0 m³/s | 7.5 m³/s | 9.0 m³/s | 9.0 m³/s | 13.1 m³/s | 17.0 m³/s | 18.5 m³/s | 20.5 m³/s | 25.0 m³/s | 36.0 m³/s |
| Pressure | 1.390 Pa | 1.950 Pa | 1.850 Pa | 2.300 Pa | 2.350 Pa | 2.100 Pa | 2.300 Pa | 2.840 Pa | 2.400 Pa | 1.950 Pa |
| ELECTRICAL DATA | ||||||||||
| Max. current consumption | 11 A | 14 A | 17 A | 21 A | 27 A | 36 A | 45 A | 55 A | 78 A | 95 A |
| Electrical connection | 5.5/16 kW/A | 7.5/16 kW/A | 9.0/32 kW/A | 11/32 kW/A | 15/32 kW/A | 18.5/50 kW/A | 22/50 kW/A | 30/63 kW/A | 45/100 kW/A | 55/100 kW/A |
| Dimensions | 1.100 x 1.030 x 1.420 mm (L x W x H) | 1.100 x 1.030 x 1.420 mm (L x W x H) | 1.250 x 1.080 x 1.570 mm (L x W x H) | 1.250 x 1.080 x 1.570 mm (L x W x H) | 1.570 x 1.210 x 1.910 mm (L x W x H) | 1.670 x 1.550 x 2.060 mm (L x W x H) | 1.670 x 1.600 x 2.570 mm (L x W x H) | 1.670 x 1.600 x 2.570 mm (L x W x H) | 1.750 x 1.900 x 2.330 mm (L x W x H) | 1.750 x 1.920 x 2.190 mm (L x W x H) |
| Weight | 220 kg | 220 kg | 260 kg | 270 kg | 450 kg | 650 kg | 650 kg | 700 kg | 800 kg | 1.000 kg |
Product description
Handling and operation
- Robust industrial construction provides long service live
- Extremely powerful thanks to pressure stability
- Optimal air speed for outstanding impact and air flow
- Energy-efficient operation with frequency control
- Prevention of air loss – especially important for low charging heights
- Runs quietly thanks to a soundproofed construction
- Quality inspection with trial run at factory
* Higher pressures possible on request
