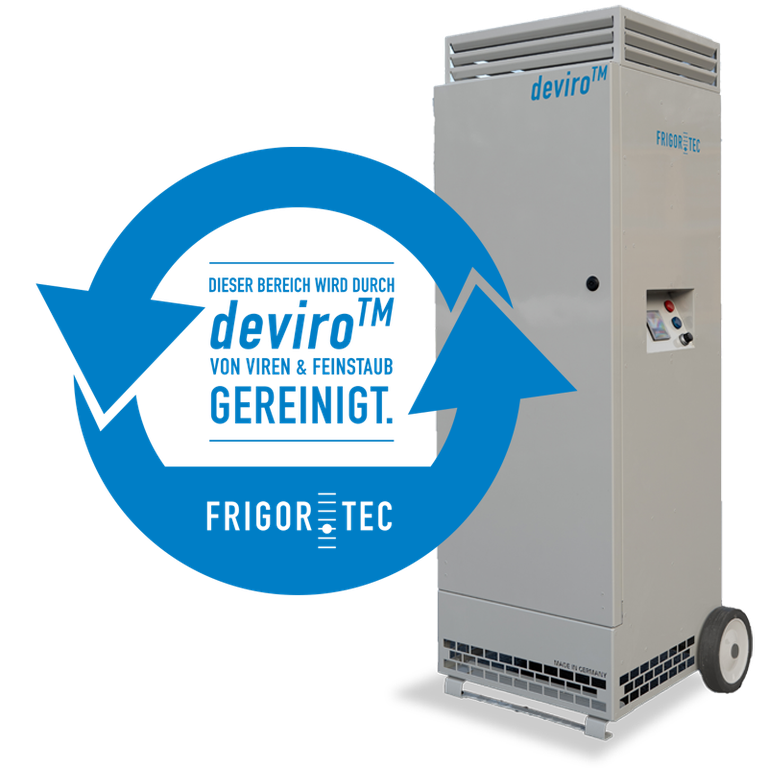

STANDARDFRIGOR Air purifier deviro™
The deviro™ cleans room air of fine dust, viruses and other elements that are harmful to health using a three-phase filtration system. The downstream HEPA H14 filter removes 99.995% of impurities from the air. Despite its powerful fan, the deviro™ is one of the quietest filtration devices in its class and can therefore also be used in work rooms.
Fields of application
- Areas with a high turnover of people, such as supermarkets, fitness studios and restaurants
- Noise-sensitive environments such as work rooms, control stands, offices, meeting rooms, technology control centres and medical practices
- Industrial applications such as production areas and electronics rooms with personnel
Product overview

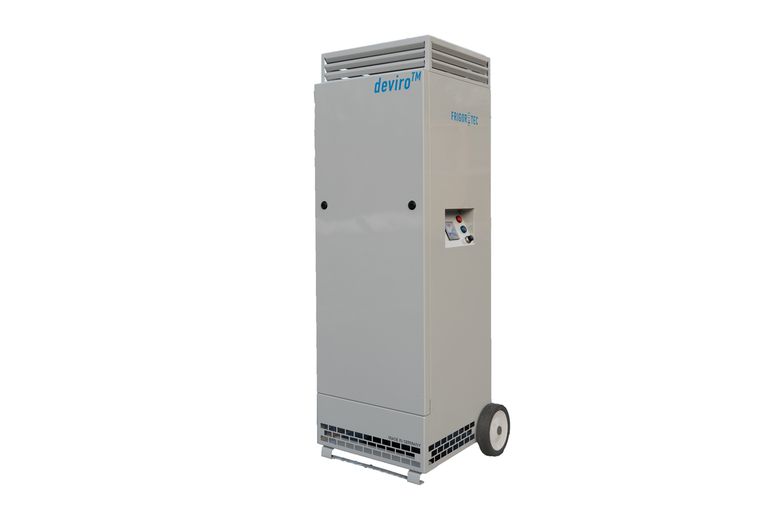

STANDARDFRIGORdeviro™ AF650
- Three filter stages remove 99.995% of air impurities
- Sound insulation enables use in noise sensitive surroundings
- Simplified transport with handles and fixed castors
- Every deviro™ is produced at our German plant and undergoes a factory test run before delivery
- Easy operation, timer can be selected with app
- Optional UVC technology for additional safety
STANDARDFRIGOR | deviro™ AF650 |
|---|---|
| Max. air flow volume | 615 m3/h |
| Max. recommended room size | |
| Air exchange rate 2/h | 308 m3 |
| Air exchange rate 4/h | 153 m3 |
| Air exchange rate 6/h (required for coronavirus protection) | 102 m3 |
| Filter | |
| Filter stage 1 | M5 (60% degree of separation 1)) |
| Filter stage 2 | F9 (99% degree of separation 1)) |
| Filter stage 3 | H14 (99.995% degree of separation 2)) |
| ELECTRICAL DATA | |
| Mains connection | 230 V/50 Hz |
| Power consumptio | 200 W |
| Nominal current consumption | 1,8 A |
| Recommended fuse | 4,0 A |
| Connection plug | CEE 7/7, H07RN-F |
| Length of mains cable | 5 m |
| Noise emissions (with new filters) | 52 ± 3 dB(A) in 1 m |
| Dimensions | 600 x 650 x 1.600 mm |
| Weight | 90 kg |
| Colour | RAL 7035 (light grey) |
Technical features
- Coarse dust filter
- Fine dust filter
- HEPA H14 suspended matter filter
- Reverse-bent EC radial fan in the spiral housing, single-sided suction
- Constant volume flow control
- Differential pressure-controlled filter change display for pre-filter stages
- Freely programmable weekly timer switch (10-year power reserve)
- Operating mode switch
- Operating and warning signal lights
- Cold device socket with fuse
- Mains connection with mains switch
- Powder-coated steel housing
Sound insulation
- Housing sound insulation
- Fan with floating support for acoustic decoupling
- Labyrinth sound absorber on suction side, screen muffler on pressure side
Equipment
- Transport handle
- Fixed castors
- Foot
- Diffusor cover (easy to remove)
Wear/replacement parts
- Coarse dust filter (replacement interval every 12 months)
- Fine dust filter (replacement interval every 12 months)
- HEPA H14 suspended matter filter (replacement interval every 2 years)
