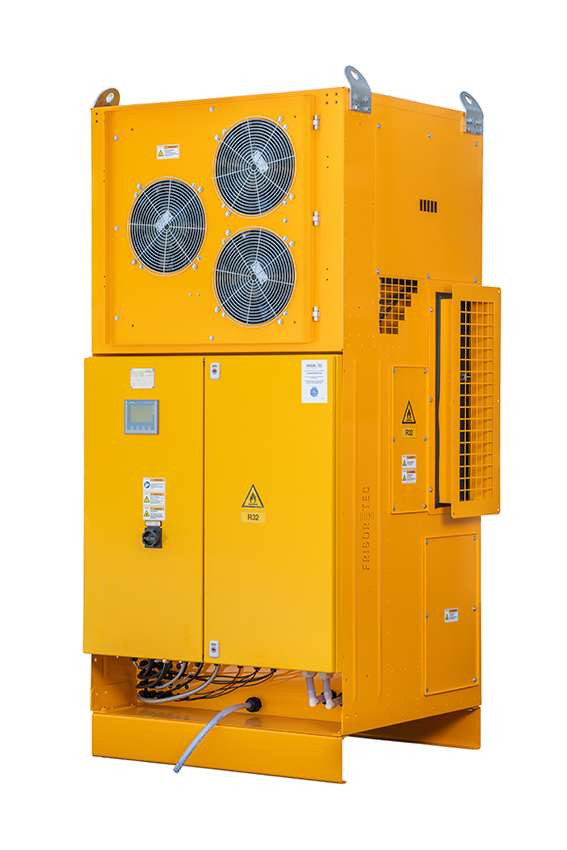

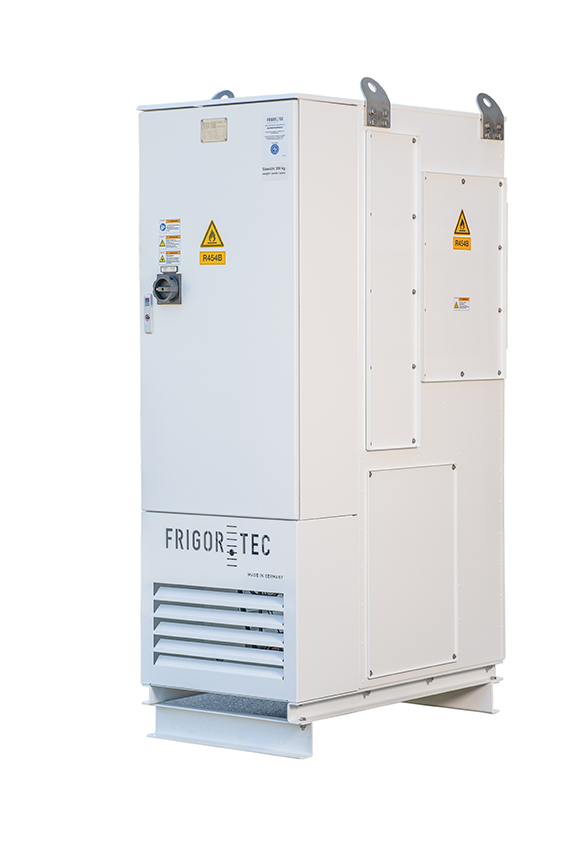

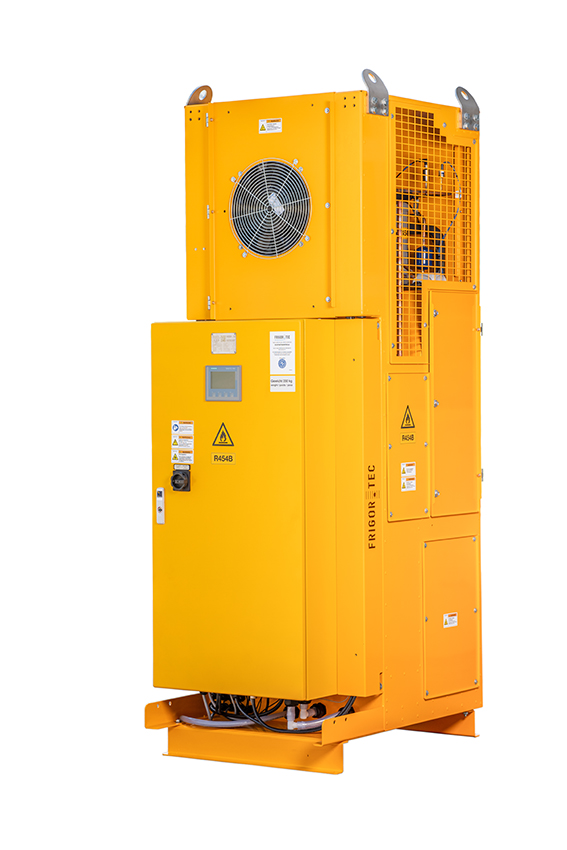

STANDARDFRIGOR BatteryCooler
Energy storage in the form of batteries plays a key role in today’s world; for example, for the operation of electric vehicles and energy systems. When storing batteries, it is extremely important to maintain a defined temperature range. On the one hand, overheating can impair battery performance and shorten their service life. Furthermore, overheated batteries pose an increased risk of fires and explosions. When developing the BatteryCooler, FrigorTec focused on the cooling requirements for battery containers. Accordingly, it ensures safe and long-term operation even under extreme environmental conditions.
Fields of application
- Sustainable technology that conserves resources
- High operational reliability, designed for continuous operation
- Low maintenance, energy-saving
- Remote access via FrigorTec Smart Control FSC
- Global service network
Product overview
STANDARDFRIGOR | BatteryCooler BC10 | BatteryCooler BC20 | BatteryCooler BC30 | BatteryCooler BC40 |
|---|---|---|---|---|
| Cooling performance | 10 kW | 20 kW | 30 kW | 40 kW |
| Volume flow | 4000 m³/h | 4800 m³/h | 6500 m³/h | 6500 m³/h |
| Cooling mode temperature range | - 25 °C bis + 48 °C | - 25 °C bis + 48 °C | - 25 °C bis + 48 °C | - 25 °C bis + 48 °C |
| Power consumption | - 25 °C bis + 30 °C | - 25 °C bis + 30 °C | - 25 °C bis + 30 °C | - 25 °C bis + 30 °C |
| Weight | 350 kg | 380 kg | 600 kg | 600 kg |
| Operating voltage | 3ph / 400 V / 50 Hz | 3ph / 400 V / 50 Hz | 3ph / 400 V / 50 Hz | 3ph / 400 V / 50 Hz |
| Protection class | IP54 | IP54 | IP54 | IP54 |
| Refrigerant | R454B | R454B | R454B | R454B |
| Refrigerant | R32 | R32 | R32 | R32 |
| Heating capacity | 7,0 kW | 7,0 kW | 10,4 kW | 10,4 kW |
Technical features
- Robust, welded construction, primed and powder-coated

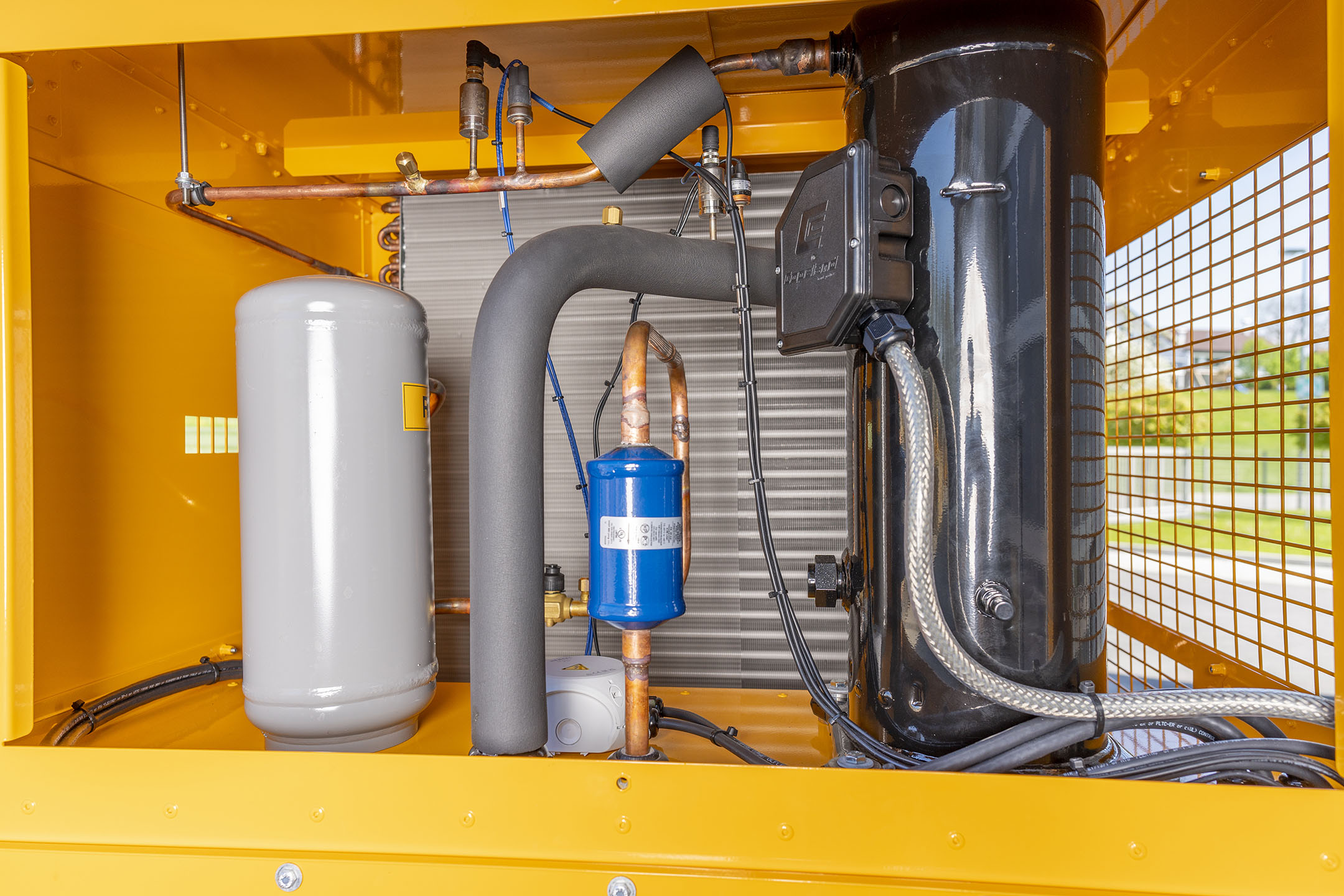

- Speed-controlled compressor in fully hermetic design
- Suction gas-cooled motor, no risk of overheating
- Self-regulating oil sump heating for reliable lubrication during start-up
- Liquefier consisting of a galvanised steel housing with epoxy-coated aluminium fins
- Condenser fan: speed-controllable EC axial fan in industrial design
- Recirculation fan: speed-controllable EC radial fan in industrial design
- Powder-coated control cabinet, fully wired, complies with
- VDE standards
- Large-area frame filter, COARSE 90% filter class
- FrigorTec Smart Control FSC, controllable via app
- Optional stainless steel version
- Environmentally friendly refrigerant, meets statutory regulations (EU) No. 517/2014
